Light weight 3.5 lb
Deployment in 3 minutes
Up to 90 minutes flight time
Up to 1,235 ac mission coverage at 400 ft altitude
Silent radio mission
3D modeling, terrain & thermal mapping
High Accuracy Tactical Mapping Solution

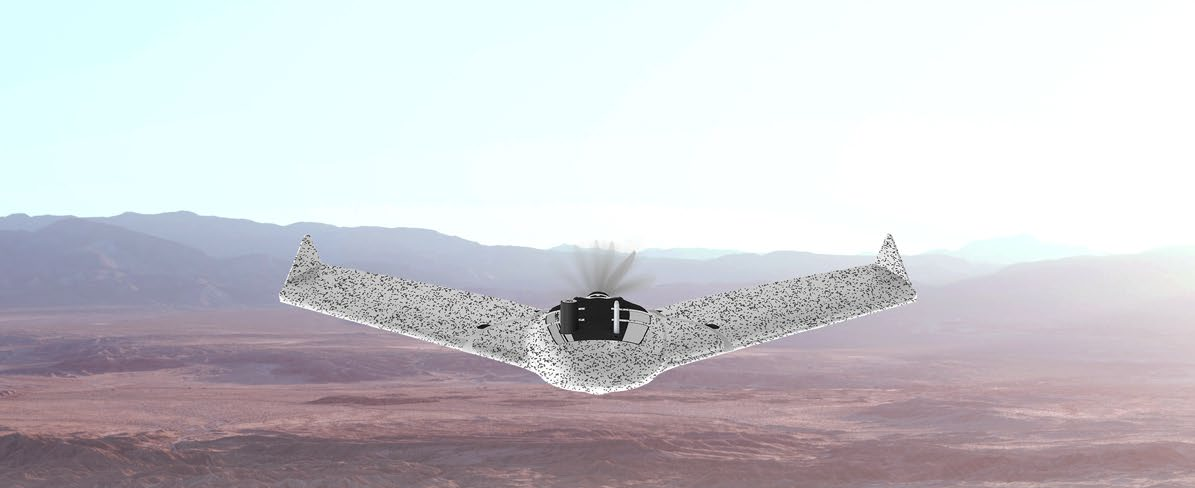

eBee TAC operates in disconnected environments to provide a higher-accuracy mobile solution to map
and share imagery data on rapidly-shifting environments in order to analyze and act with precision.
This is a Swiss made portable solution that can be transported and maintained without requiring external support.
Validated as Cyber-Secure
- Radio Data Link Encryption AES-256
- Drone Log File Suppression
- Silent Radio Mission
- Data and Communication Control
- Encrypted SD Card
eMotion Flight Planning Software
Easy-to-use, eMotion helps you get your drone in the air
quickly while including all the functionality you need to
collect and manage exactly the geospatial data you require.
- Offline flight planning
- Multidrone capable
- 3D flight planning
- Automated mission block
Data generated
With its mission directed swappable sensor suite, eBee TAC allows you to collect data
that can be immediately used via the SD card for analysis and decision making
Detailed 3D models
Orthomosaic high-resolution map
Terrain and surface model
Thermal map
Application example
Fully operational solution with the capability to integrate with situation awareness tools such as ATAK
Specifications
| Table Header | |
|---|---|
| Wingspan | 45.7 in (116 cm) |
| Material | Expanded Polypropylene (EPP) |
| Underbody skin | Curv® Polypropylene thermoplastic composite |
| Max. take-off weight | 3.6 lb (1.6 kg) |
| Transport case dimension | 29.5 x 20 x 13 in (75 x 51 x 33 cm) |
| Table Header | |
|---|---|
| Motor | Low-noise, brushless, electric |
| Detachable wing | Yes |
| Radio link range | 1.9 mi (up to 5 mi) 3 km nominal (up to 8 km) |
| Frequency | 2.400 – 2.4835 GHz |
| Data storage | On-board encrypted SD card |
Flight performance
| Table Header | |
|---|---|
| Cruise speed | 11-30 m/s or 25-68 mph (40-110 km/h) |
| Max. wind resistance | Up to 12.8 m/s or 28.6 mph (46 km/h) |
| Landing type | Linear landing with Steep Landing technology (16.4 ft / 5 m accuracy in 35° angle cone) |
| Service temperature | 5° to 104°F (-15° to 40°C) Working above 95 °F / 35°C requires to protect the drone from the sun while on the ground |
| Humidity | Light rain resistance |
| Ground avoidance | Yes – LiDAR (range 394 ft / 120 m) |
| Ground resolution | Down to 0.6 in (1.5 cm) |
| Max. flight time | 90 minutes |
| Mission coverage at 400 ft / 120 m | 543 ac to 1,235 ac (2,2 km² to 5 km²) |
| Linear coverage | Up to 17.2 mi (27.7 km) out and back |
